Outdoor Chemical Storage fireproof building for drums and IBCs for Australia, Dubai, Europe, Malaysia, India, Russia, USA
Safely and securely store DURM OR IBCS with outdoor dangerous goods storage containers.
Applications:
Available in a variety of styles to accommodate different substances including flammable, corrosive, toxic or oxidizing agents. Simply select your dangerous goods Class requirements from the dropdown menu above.
Safety equipment to store, transfer, use, and dispose of hazardous materials.
According to FM6049
Flammable Gas
(A material that is a gas at 68⁰F (20⁰C) or less at an absolute pressure of 14.7 psi (101.3 kPa) when in a mixture of 13% or less by volume with air, and that has a flammable range at an absolute pressure of 14.7 psi (101.3 kPa) with air of at least 12%, regardless of the lower limit.)
The buildings are used in a variety of commercial and industrial applications. Some of these uses are to store and/or dispense ignitable liquids, to store flammable and non-flammable compressed gases in cylinders and to store other types of combustible and non-combustible goods such as chemicals, fertilizers and other general storage.
Sopers1 outdoor chemical buildings is designed for these dangerous liquids.
You also can choose different accessories if you need put other series chemical liquids.
DETAILS

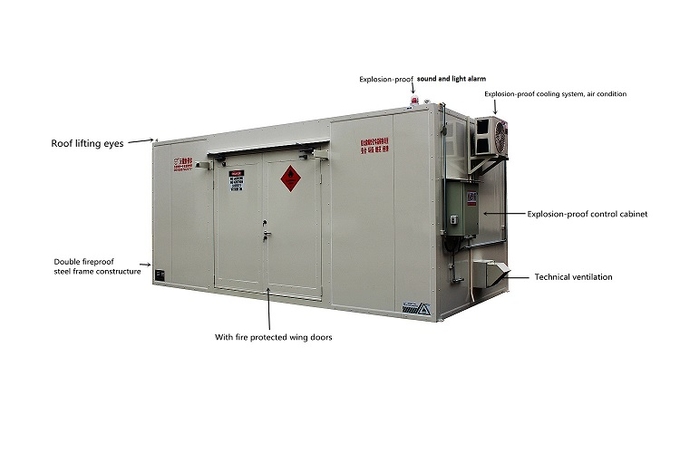

Construction: Store delivered to site fully assembled, Heavy duty welded tubular steel framework construction, side metal wall and roof panels, with roof lifting eyes
Ventilation: Technical forced ventilation on the side wall .
Signage: Hazard/ Warning Signs fitted to doors as standard.
Grounding Kits
Static Ground Connector
Leak Sump
Dry Chemical Fire Suppression System
Can choose different function .
Explosion-proof cooling system, air condition
Warm system
Explosion-proof monitoring
Explosion-proof control cabinet
Optional door latch system
Optional door closing switch
Outdoor Dangerous Substances warehouse/ Building/ locks types
Shelf Chemical Storage Building Specification
| Model | Door Type | External Dimensions L xD xH(mm) | Internal Dimensions L xDxH(mm) | Loading Capacity(IBC/ DRUM) | Net weight (KG) |
| SSLCJ3031 | 2 Swing doors | 3000 x 3120 x 1650 | 1300 x 2920 x 1350 | - / 8 x 2 per shelf | 3000 |
| SSLCJ3470 | 2 Swing doors | 3400 x 6500 x 1650 | 1500 x 3000 x 1350 | 8 x 2 per shelf /- | 7000 |
| SSLCJ3070 | 2 Swing doors | 3000 x 6500 x 1650 | 1300 x 3000 x 1350 | - / 16 x 2 per shelf | 8000 |
Remarks: SSLCJ SSLFX customized size can be accepted
Can choose self-locking system

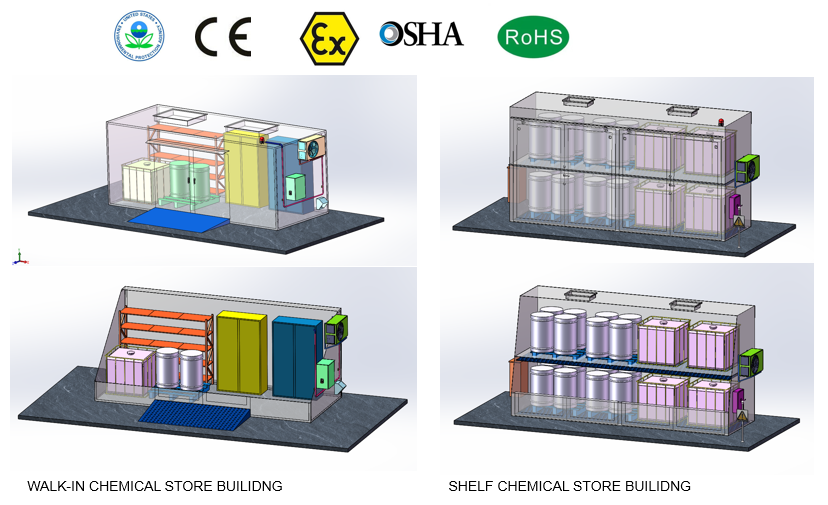

Walk-in Chemical Substance Storage Building Specification
| Model | Door Type | External Dimensions L xD xH(mm) | Internal Dimensions L xDxH(mm) | Loading Capacity per unit (kg) | Weight (kg) |
| SSLFX2660 | 2 Swing doors | 2300 x 6000 x 2600 | 2100 x 5800 x 2350 | 3800 | 3000 |
| SSLFX2690 | 2 Swing doors | 2300 x 9000 x 2600 | 2100 x 8800 x 2350 | 5800 | 6000 |
| SSLFX26120 | 2 Swing doors | 2300 x 12000 x 2600 | 2100 x 11800 x 2350 | 7800 | 10000 |
Remarks: SSLFX customized size can be accepted
Can choose shelf rack
Can choose self-locking system
Can choose door ramp
DETAILS
Certificate
CE SGS
